Installing the AquaWing in Clinics

The AquaWing is easy to install and is delivered with clear and comprehensive installation instructions. Additionally, we have complete, easy to follow pre-installation instructions which detail space requirements, sanitary sewer connections and hot and cold water connections.

Detailed below are the space and plumbing requirements for installation of the AquaWing Treatment Table.

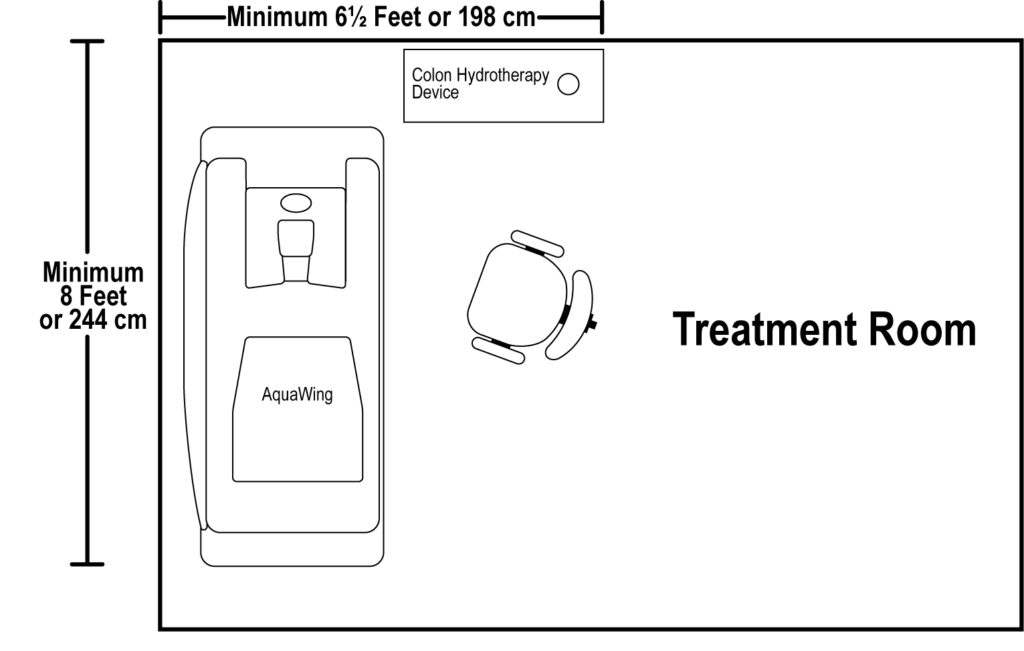

Clinic Layout:



Installation Access Requirements

Contact us for installation access requirements.

Plumbing and Electrical:

2″ Sanitary Drain Connection

Located in the wall under 13” from the floor depending on location relative to the treatment table waste outlet. The transverse pipe run from the table to the wall connection must maintain a downwards draining slope of ¼” per 12”.

2” (5.1cm) Sanitary Sewer Connection

Rigid pipe with a dedicated P-trap configuration.

Hot and Cold Potable Water Shut-off Valves

If a colon hydrotherapy device is used for treatment water delivery, each water connection can be branched with T-fittings to supply both the treatment table and the colon hydrotherapy device. Requires a 3/8 inch compression fitting.

Odour Venting

The Venting System integrated into the Table requires venting to the outside.

2″ PVC Plumbing Pipe or 2″ Central Vacuum Pipe or 2″ Central Vacuum FlexTubing.



Ground Fault protected Electric Power Outlet

110-240VAC. 50-60 Hz, 2.7A

Water Feed Requirements:

Maximum water pressure 70 pounds per square inch (PSI)

Maximum hot water temperature 55ºC/131ºF

Water must be from a potable municipal water source.

Installing the AquaWing in Clinics

The AquaWing is easy to install and is delivered with clear and comprehensive installation instructions. Additionally, we have complete, easy to follow pre-installation instructions which detail space requirements, sanitary sewer connections and hot and cold water connections.

Detailed below are the space and plumbing requirements for installation of the AquaWing Treatment Table.

Clinic Layout:



Installation Access Requirements

Contact us for installation access requirements.

Plumbing and Electrical:

2″ Sanitary Drain Connection

Located in the wall under 13” from the floor depending on location relative to the treatment table waste outlet. The transverse pipe run from the table to the wall connection must maintain a downwards draining slope of ¼” per 12”.

2” (5.1cm) Sanitary Sewer Connection

Rigid pipe with a dedicated P-trade configuration.

Hot and Cold Potable Water Shut-off Valves

If a colon hydrotherapy device is used for treatment water delivery, each water connection can be branched with T-fittings to supply both the treatment table and the colon hydrotherapy device. Requires a 3/8 inch compression fitting.

Odour Venting

The Venting System integrated into the Table requires venting to the outside.

2″ PVC Plumbing Pipe or 2″ Central Vacuum Pipe or 2″ Central Vacuum FlexTubing.



Ground Fault protected Electric Power Outlet

110-240VAC. 50-60 Hz, 2.7A

Water Feed Requirements:

Maximum water pressure 70 pounds per square inch (PSI)

Maximum hot water temperature 55ºC/131ºF

Water must be from a potable municipal water source.
